Wolfgang Warmbier Metriso® 3000 Resistance Meter
The Wolfgang Warmbier Metriso® 3000 is a digital high resistance meter for measuring point-to-point resistance and resistance to ground of persons, shoes, mats and floor systems in an ESD protected area.
The Metriso® 3000 has an integrated data logger so that test results can be stored in the instrument for downloading via a USB communication port. The ETC (Electric Testing Centre) software supplied with the meter allows the user to create a test recording structure which is sent to the Metriso 3000® prior to measurements being taken. Following testing, the recorded data is downloaded from the Metriso 3000 to the ETC software.
The meter can be purchased either as a single item or as part of a complete kit containing all the necessary accessories required for carrying out testing in an EPA.
Test voltage: DC 10 volts, 100 volts and 500 volts
Test range: 103 to 1012 Ohms
Operation: Battery operated (batteries included)
Complies with IEC 61340-4-1, IEC 61340-2-3, IEC 61340-4-5, IEC 61340-4-9
A detailed specification and operating instructions for the Metriso® 3000 are shown in Product Information
Metriso® 3000 meter product code 83070, supplied with:
- Operating instructions
- Calibration certificate

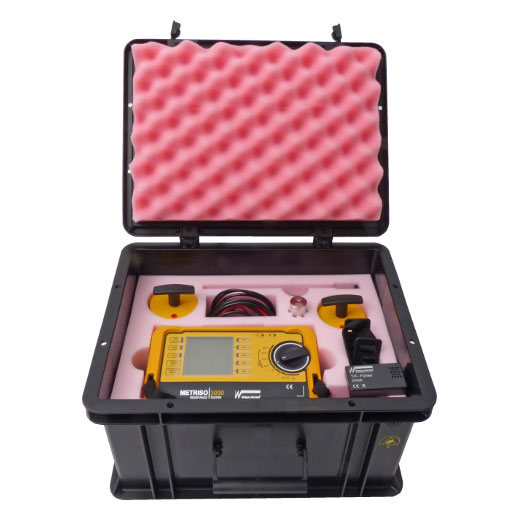

Metriso® 3000 Test Kit product code 83071, containing:
- Metriso® 3000 meter
- Operating instructions
- Calibration certificate
- ETC report generating software

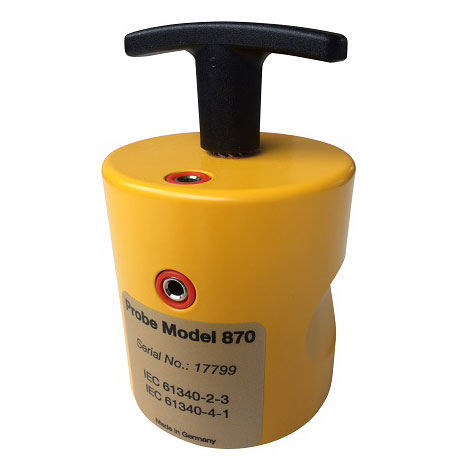

- Two 2.27 kg /63.5 mm diameter Model 870 non-marking probes with connecting leads

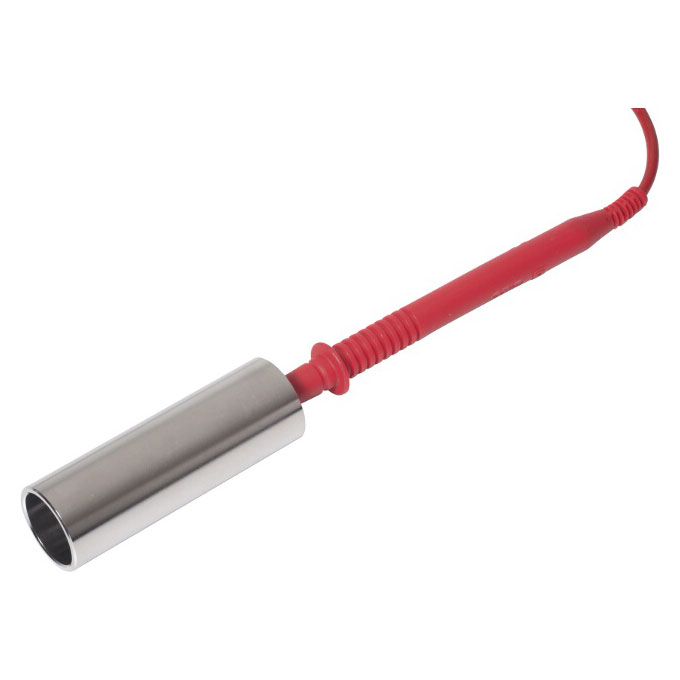

- One hand-held Model 45 probe with connecting lead

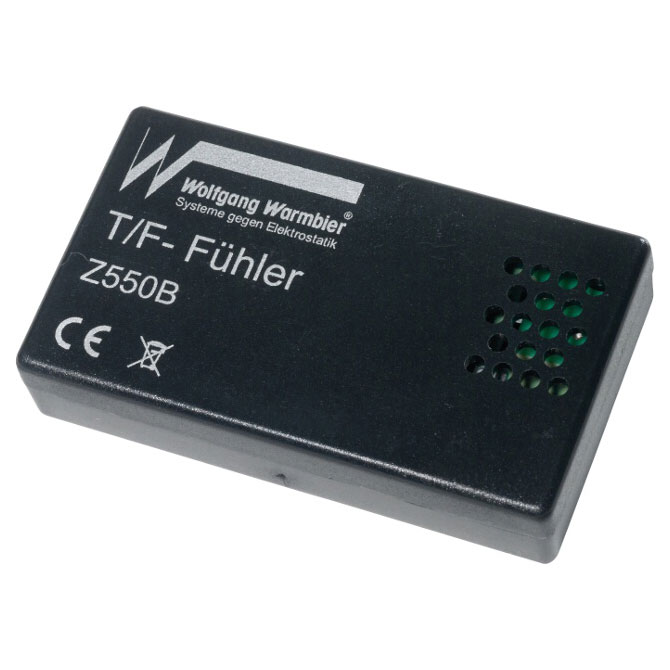

- Clip-on temperature and humidity sensor
- Wez conductive carrying case fitted with machined dissipative pink foam insert
Items in the test kit can be purchased individually – see below for details and prices

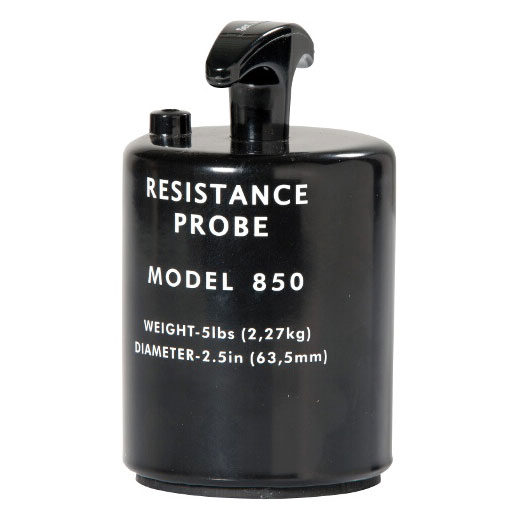

Model 850 probes with dissipative black plastic covers are also available – contact us for details
